All-new 2021 Ram 1500 TRX: Quickest, Fastest and Most Powerful Mass-produced Truck in the World

23-Aug-2020
4X4

The all-new 2021 Ram 1500 TRX expands the brand’s light-duty lineup and sets new benchmarks for power and performance among half-ton pickup trucks with its 6.2-liter supercharged HEMI V-8 engine.

“The all-new 2021 Ram TRX sets the benchmark for extreme performance pickup trucks and solidifies Ram Truck’s position as the off-road truck leader,” said Mike Koval, Head of Ram Brand, FCA – North America. “Ram has a strong history of high-performance trucks and TRX adds to that while expanding the light-duty lineup with the segment’s best combination of performance, capability, luxury and technology.”

Rated at 702 horsepower and 650 lb.-ft. of torque, the 6.2-liter supercharged HEMI V-8 engine powers the Ram TRX to a top speed of 118 mph. Combined with a high-torque-capacity TorqueFlite eight-speed automatic transmission, the Ram TRX delivers a new level of performance: 0-60 miles per hour (mph) in 4.5 seconds and the quarter mile in 12.9 seconds at 108 mph. A proven and reliable high-performance engine, the 6.2-liter supercharged HEMI V-8 engine delivers top output for extended driving sessions without degradation in performance. The 2021 Ram TRX benefits from up to 32 inches of water fording, up to 8,100 pounds towing and a maximum payload capacity of 1,310 pounds.

The all-new 2021 Ram TRX features an aggressive stance and a wide, muscular body, an “hour-glass” body design that features composite flares and fender wells that have been stretched to cover aggressive 35-inch Goodyear Wrangler Territory 325/65/R18 All-Terrain tires. Ram TRX is 8 inches wider when compared to the rest of the Ram 1500 lineup and the composite flares help to compensate for a 6-inch increase in track width. Normally, Ram 1500 features a wheel that is 8 inches wide but the TRX design team had to accommodate a wheel that is 9 inches wide. The front axle was shifted 20 millimeters forward to accommodate the 35-inch Goodyear Territory All- Terrain tires that were designed exclusively for TRX. The 35-inch tires are available with 18-inch beadlock-ready wheels with accent-color-matched rings.

LED clearance marker lights flank the front bumper, creating a menacing light signature that further sets TRX apart from anything on the road – day or night. A new, aluminum hood features bright LED clearance lights that are integrated in the hood scoop. The hood scoop is responsible for 50 percent of air entering the 6.2-liter supercharged HEMI V-8 engine while the other 50-percent enters through the grille. Design elements like the functional hood scoop are complemented by secondary details such as the functional air curtain just outboard of the headlamps, relieving high pressure zones at the front corners, and allowing air to pass through the fenders.

A unique R-A-M badge, front grille, hood, skid plates and steel bumpers help the TRX meet extreme functional objectives. The “R-A-M” badge is bigger when compared to the rest of the Ram 1500 lineup and features a new “flow-through” design that assists with airflow. All-black premium LED headlamps, including twin bi-functional projector headlamps, are standard.

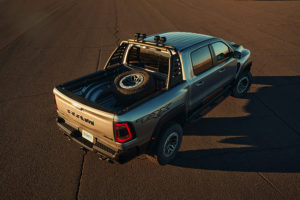

A bed-mounted spare tire carrier is available in addition to the standard full-size spare tire that sits underneath the bed, between the rear axle and trailer hitch. Premium LED taillamps are standard on TRX and the bezels allow for the Blind Spot Monitor function to see around the extended box outers.

The all-new 2021 Ram TRX features three interior options, including premium cloth and vinyl, premium-wrapped leather and suede or premium-wrapped leather and suede with available red and carbon fiber accents. Based on the Rebel layout, trucks outfitted with the TR Equipment Groups will greet occupants with premium cloth and vinyl accents featuring Black and Dark Ruby Red surfaces. Opting for the TR1 or TR2 Equipment Group brings an interior based on the Ram 1500 Limited and features an all-black color scheme with leather and suede to give TRX a unique feel. Heated and ventilated premium Natura Plus leather with perforated-suede accents cover the front bucket and rear bench seats. The TR1 and TR2 Equipment Groups come standard with medium Greystone stitching and Graphite Metallic accents. The TR2 Equipment Group offers TRX red stitching and carbon fiber accents as an
available option.

Ram TRX features new front seats with enhanced upper bolster support and embroidered logos. TR1 and TR2 Equipment Groups feature a Modular Lightweight Load-bearing Equipment/Pouch Attachment Ladder System (MOLLE/PALS) on the seatback that enables bags and other equipment to be weaved in place. A new SRT-signature flat-bottom steering wheel with enhanced hand grips wrapped in leather with optional suede and carbon fiber accents enables performance driving. New aluminum paddle shifters stretch above and below the steering wheel spokes allowing the driver to choose the proper gear with their fingertips. A console mounted performance floor shifter, which includes a cast metal main grip wrapped with semi-perforated leather, lends itself to spirited performance driving that TRX was bred for, while maximizing storage. Both the console and paddle shifters mark the debut of each in a Ram truck.

Designed bolt by bolt to significantly outperform every other truck, the 2021 Ram TRX has been rigorously tested to handle the most punishing conditions with extreme capability and durability. The 2021 Ram TRX’s frame is composed of thicker, optimally shaped, strategically placed high-strength steel that utilizes low-torsion attributes to increase durability and stability. Sections of the frame are hydroformed for dimensional accuracy, reducing the need for welding, and the side rails are fully boxed. The front rails use high-strength steel and hydroformed sections to set a strong foundation to better handle the front suspension load.  Galvanized frame components are utilized for improved corrosion protection. The Ram TRX boasts a ground clearance of 11.8 inches due in part to a 2-inch ride height increase when compared with the rest of the 1500 lineup, along with 35-inch tires. This combination enables TRX to clear surface obstacles easily and at high speeds. To protect critical components, including the front axle, transfer case, transmission pan and fuel tank, TRX employs five skid plates. A separate skid plate sits at the bottom of the front fascia mitigating potential damage and doubles as a belly pan. Heavy-duty gauge steel rock sliders are an available option.

An all-new independent front suspension system with active damping uses high-strength aluminum to maintain overall strength and durability. The all-new independent front suspension system includes new front upper and lower control-arms made of forged aluminum with special attention paid to the caster and camber angles during suspension cycling. The new, longer, substantially sized front upper and lower control arms are constructed of 80 ksi high-strength steel and designed with a focus on additional wheel travel and axle track width. This new suspension system features upgraded components to provide more performance and improved endurance. Out back, the Ram TRX’s rear suspension had to clear packaging barriers and the engineering team took that into consideration with this unique application. The result is an innovative and durable solution that produces greater wheel travel without reducing cargo area in the bed. The 2021 Ram TRX uses an all-new rear suspension system with active damping and an exclusive five-link coil system for incredible ride characteristics and durability. The frame’s hard points for the five-link suspension system differ when compared to a standard-issue Ram 1500 and allows the Dana 60 rear axle to travel up to 13 inches. Overall, rear-wheel travel is increased to more than 13 inches from the standard 9 inches, or more than 40 percent when compared to the rest of the Ram 1500 lineup.

New 2.5-inch Bilstein Black Hawk e2 adaptive performance shocks use precision-machined, single-piece construction comprised of rigid aluminum to reduce and dissipate heat and continuously adjust damping forces for optimal body control and terrain isolation. The adaptive performance shocks feature robust corrosion protection with a durable finish and directional-machined cooling fins aligned with air flow for more effective cooling. Dual Electronic Proportional Valves continuously adjust damping forces for precise, independent control of compression and rebound damping. A nitrogen-charged remote reservoir uses a hot-formed, zero- leak tube closure to ensure maximum durability during extreme on- and off-road events. In addition to a standard urethane jounce bumper, the internals of the Bilstein adaptive performance shock feature a Jounce Cut Off to create three zones for progressive bottom-out control during extreme compression events. All modes can reach peak compression damping for the most extreme events.

 The Ram TRX is equipped with a new BorgWarner 48-13 full-time active transfer case that enables passage through any off-road obstruction or weather condition. This modified transfer case features upgraded internals for improved strength and durability. Ram TRX features a low range of 2.64:1 for rock crawling and can be flat-towed while in neutral. Off road, the 2021 Ram TRX will race to 100 mph with ease and the segment’s largest brakes bring it to a composed halt. Ram TRX relies on a four-wheel disc brake system and a hydraulic compensation unit to enhance brake pedal feel and performance during emergency maneuvers. Up front are two-piston monoblock calipers clamping down on 15-inch inverted hat (outboard venting) rotors for improved cooling. The rear uses single piston calipers with 15-inch rotors to provide incredible stopping power. An electronic parking brake holds the truck steady when applied and is standard.

 For the 2021 Ram TRX, engineers found that to maximize capability, it would call for a 35-inch tire. Developed exclusively for the Ram TRX, 35-inch Goodyear Wrangler Territory All-Terrain 325/65R/18 tires, featuring an aggressive tread and sidewall with D-load rating, are assigned the task. There are two different wheel designs that are available on TRX including an 18 x 9-inch optional beadlock-ready wheel straight from the factory.
